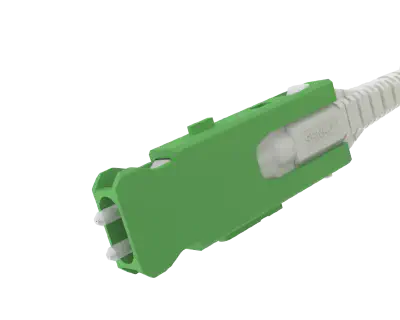

- Ultra-compact SN® connector for high-density deployments
- OM4, OM5, and OS2 fibre types available
- Low-loss SN® UPC and APC polished connector options
- 2mm round duplex cable for compact management
- Colour-coded jackets for immediate fibre type identification
- Factory-terminated and tested to exceed industry standards
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured

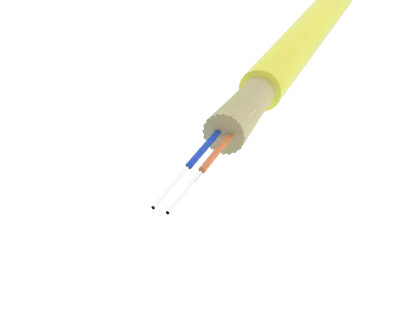

Optimised for ultra-high-density fibre networks, these 2mm round SN® duplex patch leads combine robustness and flexibility, with superior optical performance across a wide range of deployment environments. Each assembly utilises two optical fibres enclosed in a single 2mm round LSZH jacket, ideal for backbone links, patch panels, cross-connects, and direct equipment terminations.
Available in single-mode (OS2) and multimode (OM4, OM5) fibre types, all assemblies are precision-terminated with SN® connectors and factory-tested to rigorous international standards including GR-326, TIA/EIA, and IEC — delivering proven low-loss, high-reliability performance.
SN® and Senko® are registered trademarks of SENKO Advanced Components, Inc. All other trademarks are the property of their respective owners.Intended for next-generation 400G and 800G transceiver fanout across the
APAC hyperscale datacentre clusters (Singapore, Tokyo, Hong Kong,
Seoul), with applications in QSFP-DD and OSFP breakout patching in
regional AI training fabrics.
| Technical Specifications | |
| Fibre Type | Single-mode (OS2), Multimode (OM4, OM5) |
| Configuration | Duplex (2 fibres within a single 2mm round cord) |
| Connector Types | SN® (Senko®) |
| Polish Options | UPC or APC (single-mode only) |
| Insertion Loss | ≤0.12dB Mean, ≤ 0.25dB for 97% (IEC 61755-1 Grade B) |
| Return Loss | ≥50dB (UPC SM), ≥60dB (APC SM), ≥35dB (MM) (IEC 61755-1 Grade B) |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Cable Diameter | 2.0mm round jacket |
| Operating Temperature | -20°C to +70°C |
| Compliance | TIA/EIA-568, IEC 61754, AS/CA S008, RoHS, REACH |

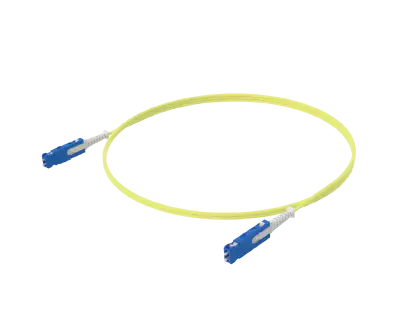

| SN®/UPC to SN®/UPC, 2mm Single Cord | |
| Part Number | Length (m) |
| PC-S7-R2-2-SN-SN-01M | 1 |
| PC-S7-R2-2-SN-SN-03M | 3 |
| PC-S7-R2-2-SN-SN-05M | 5 |
| PC-S7-R2-2-SN-SN-10M | 10 |

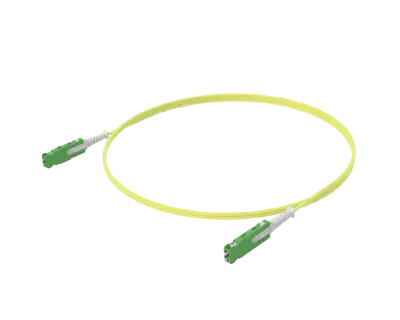

| SN®/APC to SN®/APC, 2mm Single Cord | |
| Part Number | Length (m) |
| PC-S7-R2-2-SNA-SNA-01M | 1 |
| PC-S7-R2-2-SNA-SNA-03M | 3 |
| PC-S7-R2-2-SNA-SNA-05M | 5 |
| PC-S7-R2-2-SNA-SNA-10M | 10 |
| SN®/UPC to SN®/APC, 2mm Single Cord | |
| Part Number | Length (m) |
| PC-S7-R2-2-SN-SNA-01M | 1 |
| PC-S7-R2-2-SN-SNA-03M | 3 |
| PC-S7-R2-2-SN-SNA-05M | 5 |
| PC-S7-R2-2-SN-SNA-10M | 10 |

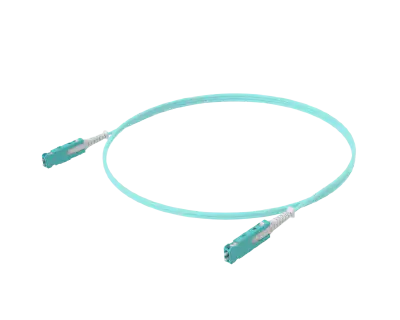

| SN®/UPC to SN®/UPC, 2mm Single Cord | |
| Part Number | Length (m) |
| PC-M4-R2-2-SN-SN-01M | 1 |
| PC-M4-R2-2-SN-SN-03M | 3 |
| PC-M4-R2-2-SN-SN-05M | 5 |
| PC-M4-R2-2-SN-SN-10M | 10 |

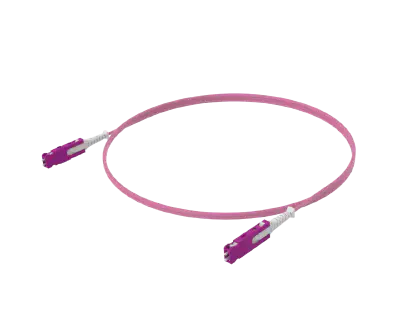

| SN®/UPC to SN®/UPC, 2mm Single Cord | |
| Part Number | Length (m) |
| PC-M5-R2-2-SN-SN-01M | 1 |
| PC-M5-R2-2-SN-SN-03M | 3 |
| PC-M5-R2-2-SN-SN-05M | 5 |
| PC-M5-R2-2-SN-SN-10M | 10 |
